WT722 Bending Beam Load Cell
High-precision single-point weighing sensor for smaller structures. It features a threaded mounting hole for easy integration onto support structures, weighing pans, or receivers. This makes it easy to integrate the sensor into new or existing weighing systems.
Product Description
Bending Beam Load Cell
Characteristics And Uses
Stainless steel material, strong stability;
High comprehensive sensitivity, compact structure;
Four-corner deviation has been compensated;
Long-term good stability;
Mainly used for stainless steel waterproof scales, process weighing in the chemical and pharmaceutical industries.
Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.

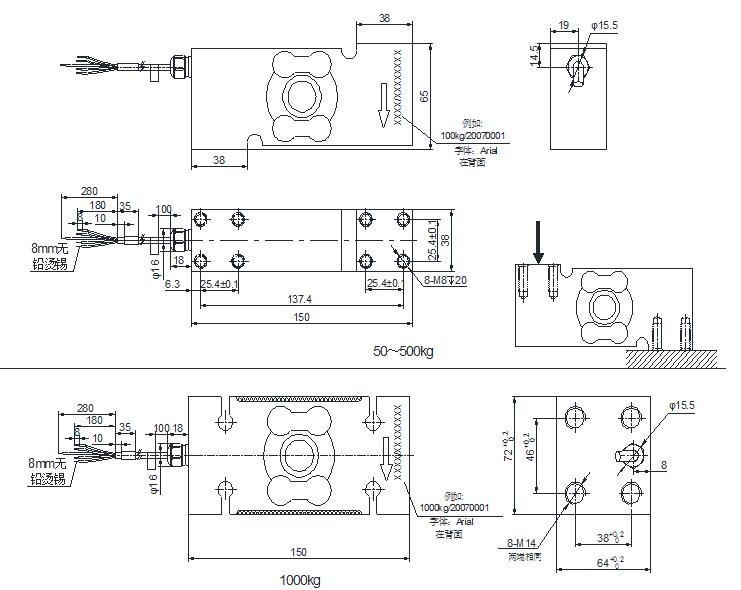

Installation Dimensions
Parameter Table
| Rated range | 50,100,200,300,500,1000 kg | Insulation resistance | ≥5000MΩ/ 100VDC |
| Sensitivity | 2.0±10% mV/V | Excitation voltage | 5 V |
| Zero-point balance | ≤1% F.S. | Maximum excitation voltage | 15 V |
| Nonlinearity | ≤0.017％F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | ≤0.017％F.S. | Operating temperature range | -40〜65℃ |
| Repeatability | ≤0.01％F.S. | Safe load (E L) | 150％F.S. |
| Creep (30 minutes) | ≤0.017％F.S. | Destruction load (E d) | 200％F.S. |
| Temperature coefficient of sensitivity drift | ≤0.002％ F.S. / 10℃ | Cable wire size | φ6×3000 mm |
| Temperature coefficient of zero drift | ≤0.002％ F.S. / 10℃ | Tighten Torque | 30N.m 160N.m |
| Input resistance | 380±20Ω | Material | Stainless steel |
| Output resistance | 350±10Ω | Protection | IP68 |
|
