WT702 Bending Beam Load Cell
The T702 weighing sensor is your best choice for the highest accuracy and reliability. With its internal microprocessor, it continuously compensates for environmental factors to provide the most accurate weight measurement. It also monitors key parameters for predictive diagnostics, ensuring precision and reliability in weighing applications.
Product Description
Bending Beam Load Cell
Characteristics And Uses
Stainless steel material, strong stability.
Suitable for various environments, IP68.
Mainly used in packaging scales, hopper scales, and various industrial weighing systems.
Application areas: automobile assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, measurement, and control systems.
Installation Dimensions
Parameter Table
| Rated range | 0.11,0.22,0.55,1.1,1.76,2.2,4.4t | Insulation resistance | ≥5000MΩ/ 100VDC |
| Sensitivity | C3 | Excitation voltage | 5~15V |
| Zero-point balance | 1.94±0.1% mV/V | Maximum excitation voltage | 20V |
| Nonlinearity | ±2％F.S. | Temperature compensation range | -10〜40℃ |
| Hysteresis error | 0.017％F.S. | Operating temperature range | -30〜70℃ |
| Repeatability | 0.017％F.S. | Safe load (E L) | 150％F.S. |
| Creep (30 minutes) | 0.0166％F.S. | Destruction load (E d) | 300％F.S. |
| Temperature coefficient of sensitivity drift | 0.014％F.S. / 10℃ | Cable wire size | φ5.4×1500 mm |
| Temperature coefficient of zero drift | 0.0125％F.S. / 10℃ | Material | 0.9 kg (0.55~1.76t) 1.6 kg (2.2t) 2.2 kg (4.4t) |
| Input resistance | 390±3Ω | Unit weight (G) | Stainless steel (Stainless Steel) |
| Output resistance | 350±5Ω | Protection | IP68 |
|
Direction of force |

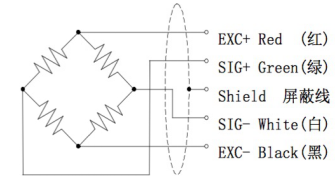

Wiring method |
 |
 |
FAQ
Q: How long will it take to provide us with the design options?
A: We are able to ship stock products within 2 weeks.
Q:Can you can design products according to our size?
A:Of course, we support customization and can design various force sensors according to your requirements.
Q:How many years have your company made this kind of product?
A:More than 20 years design experience.
Q:Which certificate do you have for your products?
A:ISO9001,CE certificate.
Q:If OEM is acceptable?
A:Yes,we support both OEM,ODM.
Q:Are you a trading company or a manufacturer?
A:We're a high-tech enterprise which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
Q:What is the express delivery?
A:"By Air:DHL, Fedex, TNT ,EMS, UPS;By Sea. We will choose the safe and cheapest way for you to reduce your cost."
Q:What is your force sensor guarantee?
A: "Quality guarantee: 12 months. If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted."
